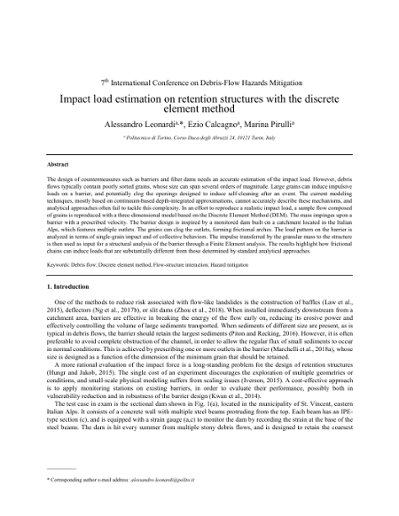

Impact load estimation on retention structures with the discrete element method
Leonardi, Alessandro Calcagno, Ezio Pirulli, Marina
Leonardi, Alessandro
Calcagno, Ezio
Pirulli, Marina
Citations
Altmetric:
Advisor
Editor
Date
Date Issued
2019
Date Submitted
Research Projects
Organizational Units
Journal Issue
Embargo Expires
Abstract
The design of countermeasures such as barriers and filter dams needs an accurate estimation of the impact load. However, debris flows typically contain poorly sorted grains, whose size can span several orders of magnitude. Large grains can induce impulsive loads on a barrier, and potentially clog the openings designed to induce self-cleaning after an event. The current modeling techniques, mostly based on continuum-based depth-integrated approximations, cannot accurately describe these mechanisms, and analytical approaches often fail to tackle this complexity. In an effort to reproduce a realistic impact load, a sample flow composed of grains is reproduced with a three-dimensional model based on the Discrete Element Method (DEM). The mass impinges upon a barrier with a prescribed velocity. The barrier design is inspired by a monitored dam built on a catchment located in the Italian Alps, which features multiple outlets. The grains can clog the outlets, forming frictional arches. The load pattern on the barrier is analyzed in terms of single-grain impact and of collective behaviors. The impulse transferred by the granular mass to the structure is then used as input for a structural analysis of the barrier through a Finite Element analysis. The results highlight how frictional chains can induce loads that are substantially different from those determined by standard analytical approaches.
Associated Publications
Rights
Copyright of the original work is retained by the authors.
