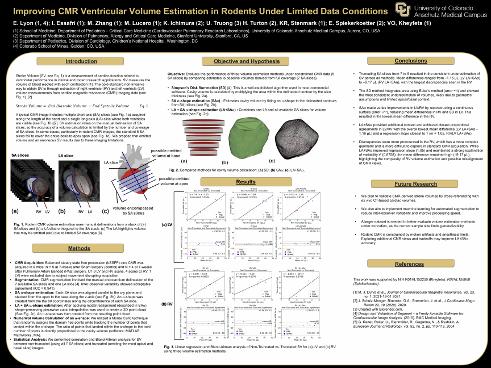

Improving CMR ventricular volume estimation in rodents under limited data conditions
Lyon, Ella M. Essafri, Ilham Zhang, Mengquian Lucero, Melanie Ichimura, Kenzo Truong, Uyen Turton, Helena A. Stenmark, Kurt R. Spiekerkoetter, Edda Kheyfets, Vitaly O.
Lyon, Ella M.
Essafri, Ilham
Zhang, Mengquian
Lucero, Melanie
Ichimura, Kenzo
Truong, Uyen
Turton, Helena A.
Stenmark, Kurt R.
Spiekerkoetter, Edda
Kheyfets, Vitaly O.
Citations
Altmetric:
Advisor
Editor
Date
Date Issued
2025-04
Date Submitted
Keywords
Collections
Research Projects
Organizational Units
Journal Issue
Embargo Expires
Abstract
Accurate ventricular volume estimation from cardiac magnetic resonance imaging (CMR) in rodents is often limited by reduced short-axis (SA) coverage due to anesthesia duration, subject health, or slice planning constraints. This study (1) evaluated how reduced SA coverage impacts volume estimates and (2) compared the performance of three reconstruction methods under these constraints: the standard Simpson’s Disk Summation (SD), a short-axis alpha-shape method (SAα), and a combined long-axis plus short-axis alpha-shape method (LA+SAα). The SAα and LA+SAα approaches are novel techniques that use alpha-meshing and Monte Carlo volume estimation to address the geometric limitations of SD. We analyzed CMR data from nine rodents (five Sham, four Pulmonary-Artery-Banded) and compared volume estimates computed with all three methods under full SA coverage (7–8 slices) and reduced coverage (5–6 slices). Incorporating a single long-axis image and mesh-based reconstruction notably improved volume accuracy, particularly for the right ventricle. These findings demonstrate that combining orthogonal imaging views with advanced volumetric estimation enhances the reliability of ventricular volume calculations under constrained imaging conditions. This approach supports more accurate preclinical cardiac assessments and provides a practical solution when full short-axis acquisition is not feasible.
